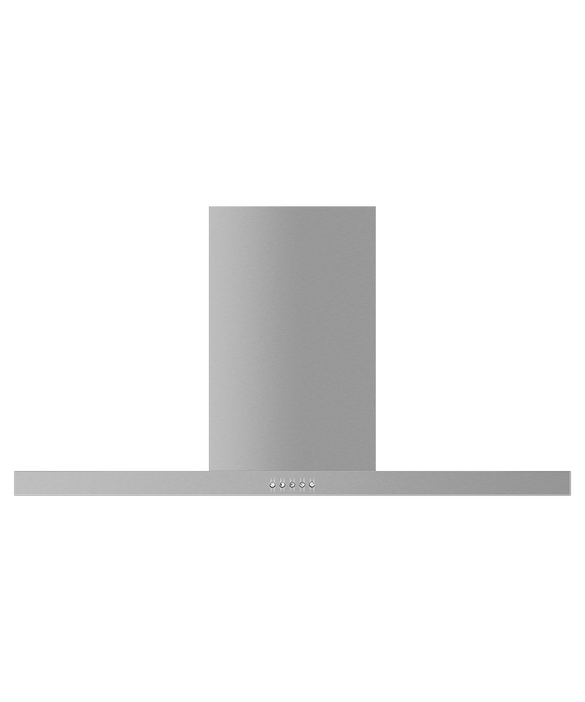

90cm 500 Series
Box Chimney Wall Rangehood
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

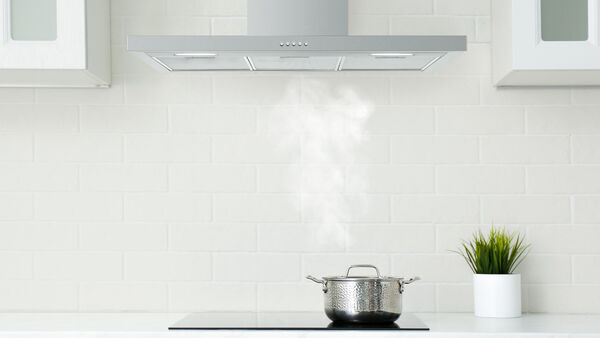

Select between three fan speeds to ensure steam, odours and grease are extracted from your kitchen at the rate you need for your cooking.

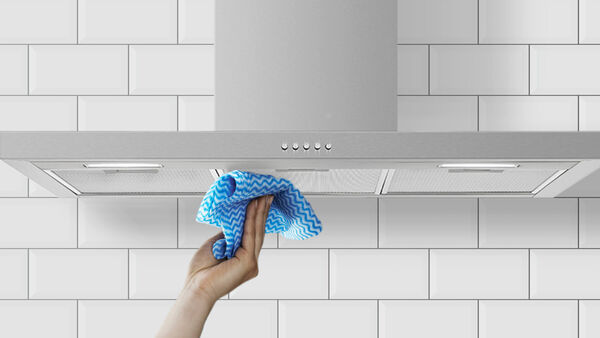

Built from beautiful stainless steel, this rangehood is easy to keep clean. Put the aluminium filters into your dishwasher regularly for a quick, simple clean.

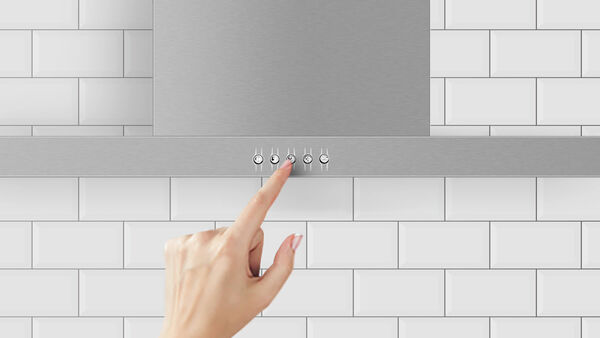

Creating culinary delights is a pleasure thanks to design features such as simple push-button controls that turn on extraction immediately, and low-energy LED lighting to perfectly illuminate your cooktop.
This rangehood offers ducted or recirculated extraction, so you can choose the solution that best suits your kitchen.
| Accessories (included) Attributes | Value |
|---|---|
| Aluminium filter | H0530063372 |
| Chimney extension | H0530062212 |
| Light bulb | H0530061789 |
| Recirculation carbon filter | H0530060509 (sold separately) |
| Recirculation kit | H0530062211 (sold separately) |
| Fan ratings Attributes | Value |
|---|---|
| Maximum air movement | 700m³/hr |
| Installation and cleaning Attributes | Value |
|---|---|
| Air outlet size | 150mm |
| Dishwasher safe filters | |
| Ducted | Top extraction |
| Recirculation | Optional - top extraction |
| Two piece height adjustable flue |
| Performance Attributes | Value |
|---|---|
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
| Power requirements Attributes | Value |
|---|---|
| Supply frequency | 50Hz |
| Supply voltage | 220 - 240V |
| Product dimensions Attributes | Value |
|---|---|
| Depth | 500mm |
| Height | 540 - 1020mm |
| Width | 898mm |
| Product information Attributes | Value |
|---|---|
| Control type | Push button |
| Ventilation features Attributes | Value |
|---|---|
| Light type | LED 2 x 2W |
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
